Ručne vedený paletový vozík 2,2 t

122 mm
2 200 kg

Ergonomický a obojstranne použiteľný ovládací prvok
Optimalizovaná hydraulika na vynaloženie menšieho úsilia
Dlhá životnosť vďaka odolným materiálom a spracovaniu
Bezúdržbovosť vďaka trvalo namazaným spojom
Špeciálny spúšťací ventil na mimoriadne citlivé spúšťanie

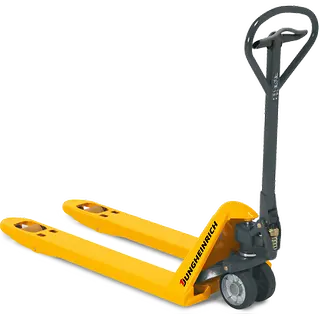

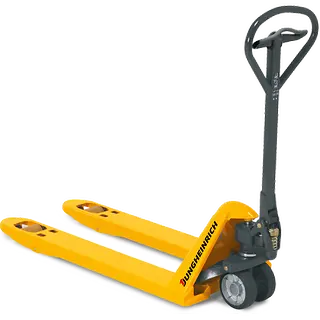

AM 22

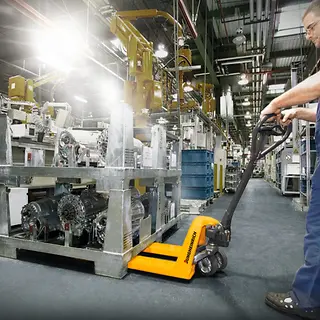

Robustné a spoľahlivé ručné vidlicové vozíky AM 22 sú klasikou značky Jungheinrich a ideálne sa hodia na každodennú prepravu tovarov na krátke vzdialenosti. Pritom sa nimi mimoriadne jednoducho manipuluje vďaka ergonomickému ovládaciemu prvku, ktorý možno z oboch strán ovládať iba pomocou jednej ruky. Optimálne zosúladená hydraulika v kombinácii s pochrómovanými puzdrami kolies a kĺbov umožňuje prepravu tovaru vyvinutím iba malého úsilia. To umožňuje mimoriadne ergonomickú prácu, a tým zvyšuje bezpečnosť vo vašom podniku. Dostupnosť používania je pri týchto ručných vidlicových vozíkoch zaručená trvalo namazanými spojmi, ako aj bezúdržbovou pumpovacou hydraulikou so špeciálnym spúšťacím ventilom. Vstavaná vysokovýkonná oceľ a zváraný držiak oja navyše zaručujú dlhú životnosť vozíka AM 22. Na bezpečnú a jednoduchú prepravu tovaru v každej situácii.

Výhody

Vlastnosti

Efektívna manipulácia

Ovládací prvok s ľahkým riadením, ktorý je rovnako vhodný pre pravákov, ako aj ľavákov.
Zvlášť citlivé a dávkované spúšťanie vďaka špeciálnemu spúšťaciemu ventilu.
Nadvihnutie europaliet nad podlahu len na 3 pumpnutia pomocou voliteľného rýchleho zdvihu (do 120 kg).
Dosiahnutie maximálnej výšky zdvihu len na 5 zapumpovaní.
Optimalizovaný hydraulický systém znižuje potrebnú pumpovaciu silu.
Potrebná ťažná sila sa znižuje vďaka kolesám s puzdrovým ložiskom.

Bezpečný a obratný

Bezpečné a ľahké nasadenie aj v najužšom priestore vďaka dĺžke prednej konštrukcie len 373 mm.
Výrazné označenie ukazuje pri priečnom uchopení presné a bezpečné uloženie palety.

Maximálna stabilita a životnosť

Stabilné vidlice a skrátené tvary.
Zváraný držiak oja.
Chránené zavádzacie valčeky.
Tvrdená oceľ.

Robustný a s tichým chodom

Mimoriadne tichý chod a dlhá životnosť vďaka pochrómovaným puzdrám kolies a kĺbom.
Veľmi dobré jazdné vlastnosti aj bez mazania spojov.

Individuálna výbava

Množstvo dĺžok vidlíc a rôzne rozmery nad vidlicami.
Rôzne brzdové systémy alebo špeciálne lakovania.
Špeciálna výbava, ako sú nerezové zariadenia alebo pozinkované varianty vozíkov.

Prehľad modelov

Model	Nosnosť	Výška zdvihu	Celková dĺžka
AM 22, 520x600, N-GN, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, N-GN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, N-GN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, N-GN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x1054, N-GN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, N-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, N-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-GN, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-GN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-GN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-GN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-GN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, C-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-GV, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-GV, NH	2 200 kg	122 mm	1 165 mm
AM 22, 520x902, C-GV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-GV, NH	2 200 kg	122 mm	1 320 mm
AM 22, 520x1054, C-GV, NH	2 200 kg	122 mm	1 424 mm
AM 22, 520x1150, C-GV, NH	2 200 kg	122 mm	1 520 mm
AM 22, 520x1207, C-GV, NH	2 200 kg	122 mm	1 577 mm
AM 22, 520x600, V-GV, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, V-GV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x902, V-GV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, V-GV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, V-GV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, V-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, V-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, N-BN, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, N-BN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, N-BN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x950, N-BN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, N-BN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, N-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, N-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-BN, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-BN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-BN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-BN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-BN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-BN, NH	2 200 kg	122 mm	1 520 mm
AM 22, 520x1207, C-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-BV, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-BV, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-BV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-BV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-BV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, C-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1360, C-BV, NH	2 200 kg	122 mm	1 733 mm
AM 22, 520x1600, C-BV, NH	1 700 kg	122 mm	1 973 mm
AM 22, 520x1900, C-BV, NH	1 200 kg	122 mm	2 273 mm
AM 22, 520x2400, C-BV, NH	500 kg	122 mm	2 773 mm
AM 22, 520x600, V-BV, NH	2 200 kg	122 mm	973 mm
AM 22, 520x795, V-BV, NH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, V-BV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, V-BV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, V-BV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, V-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, V-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, N-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, N-GN, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, N-GN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, N-GN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, N-GN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, N-GN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, N-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-GN, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-GN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x902, C-GN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-GN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-GN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-GN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-GV, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-GV, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-GV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-GV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-GV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, V-GV, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, V-GV, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, V-GV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, V-GV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, V-GV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, V-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, V-GV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, N-BN, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, N-BN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, N-BN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, N-BN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, N-BN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, N-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, N-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-BN, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-BN, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-BN, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-BN, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-BN, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-BN, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-BV, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-BV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x902, C-BV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-BV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-BV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x1150, C-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1360, C-BV, NH	2 200 kg	122 mm	1 733 mm
AM 22, 680x1600, C-BV, NH	1 700 kg	122 mm	1 973 mm
AM 22, 680x1900, C-BV, NH	1 200 kg	122 mm	2 773 mm
AM 22, 680x600, V-BV, NH	2 200 kg	122 mm	973 mm
AM 22, 680x795, V-BV, NH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, V-BV, NH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, V-BV, NH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, V-BV, NH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, V-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, V-BV, NH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, N-GN, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, N-GN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, N-GN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, N-GN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, N-GN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, N-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, N-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-GN, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-GN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-GN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-GN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-GN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, C-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-GV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-GV, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-GV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-GV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, C-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, V-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, V-GV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, V-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 520x950, V-GV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, V-GV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, V-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, V-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, N-BN, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, N-BN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, N-BN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, N-BN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, N-BN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, N-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, N-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-BN, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-BN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-BN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-BN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-BN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-BN, SH	2 200 kg	122 mm	1 520 mm
AM 22, 520x1207, C-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x600, C-BV, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, C-BV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, C-BV, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, C-BV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, C-BV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, C-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, C-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1360, C-BV, SH	2 200 kg	122 mm	1 733 mm
AM 22, 520x1600, C-BV, SH	1 700 kg	122 mm	1 973 mm
AM 22, 520x1900, C-BV, SH	1 200 kg	122 mm	2 273 mm
AM 22, 520x2400, C-BV, SH	500 kg	122 mm	2 773 mm
AM 22, 520x600, V-BV, SH	2 200 kg	122 mm	973 mm
AM 22, 520x795, V-BV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 520x902, V-BV, SH	2 200 kg	122 mm	1 275 mm
AM 22, 520x950, V-BV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 520x1054, V-BV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 520x1150, V-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 520x1207, V-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, N-GN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, N-GN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, N-GN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, N-GN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, N-GN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, N-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, N-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-GN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-GN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-GN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-GN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-GN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x1150, C-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-GN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-GV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x950, C-GV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-GV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, V-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, V-GV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, V-GV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x950, V-GV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, V-GV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, V-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, V-GV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, N-BN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, N-BN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, N-BN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x950, N-BN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, N-BN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, N-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, N-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-BN, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-BN, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-BN, SH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-BN, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-BN, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-BN, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x600, C-BV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, C-BV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, C-BV, SH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, C-BV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, C-BV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, C-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, C-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1360, C-BV, SH	2 200 kg	122 mm	1 733 mm
AM 22, 680x1600, C-BV, SH	1 700 kg	122 mm	1 973 mm
AM 22, 680x1900, C-BV, SH	1 200 kg	122 mm	2 273 mm
AM 22, 680x600, V-BV, SH	2 200 kg	122 mm	973 mm
AM 22, 680x795, V-BV, SH	2 200 kg	122 mm	1 168 mm
AM 22, 680x902, V-BV, SH	2 200 kg	122 mm	1 275 mm
AM 22, 680x950, V-BV, SH	2 200 kg	122 mm	1 323 mm
AM 22, 680x1054, V-BV, SH	2 200 kg	122 mm	1 427 mm
AM 22, 680x1150, V-BV, SH	2 200 kg	122 mm	1 523 mm
AM 22, 680x1207, V-BV, SH	2 200 kg	122 mm	1 523 mm
